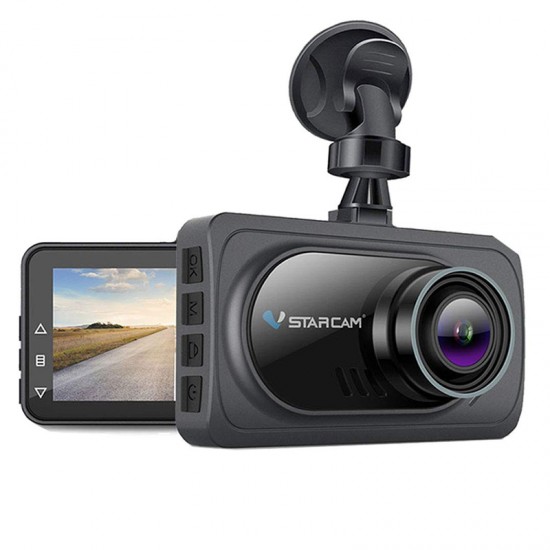

VStarcam F1-B Drive Recorder 1080P On-Dash WDR Car Camera

Product Code: F1-B
Availability: 36

Available Options

Product Features:

  • Unique Starlight Night Vision tech -with high sensitivity imaging and night Vision sensor, F/1.8 aperture lens,With WDR/HDR technology ensure the car video cam to balance the exposures to pick up balanced images and videos in dark providing good night vision in low light.
  • Great visual experience - 3 '' LCD screen with Full HD 1080p and 1920*1080 12MP resolution,allow you see every details clearly when playing back,Super large screen shows the realtime image,it's obviously,clear images/videos will hlep you avoid some claims and disputes
  • Premium G-sensor and Loop Recording - with built-in G-Sensor,can automatically detect a sudden shake/collision and lock the footage, will not miss any important footage, Loop recording automatically overwrites the oldest recordings with the newest ones when the card is the full
  • Safety driving assistant - with 170°wide angle lens allows a larger viewing angle to be recorded. For example, you will be able to see 4 lanes of traffic. The more you see, the safer you are. 6 glass fixed-focus provides better light
  • Easy to install and use - Multifunction and powerful car dvr camera was easy to install and use,come with 2 mount kits, Insert your microSD card, mount the suction cup and plug in the power, your dash cam will start recording automatically.

Product installation:

  1. Install the drive recorder on the windshield
  2. Connect the power cord to the mechine and into the line between ceiling and glass
  3. Plug the power cord along the A and pull down the lever
  4. plug the power cord into the crevices of the door along the bottom of the storage box alignment
  5. Connect the power cord to the storage tank and the direction toward the cigaratite lighter plug into the cigaratite lighter


Hardware Characteristics
Processor Generalplus Support AV-OUT NO
Lens Telaisi Angle  wide angle lens
SENSOR 1/2.7-Inch CMOS Sensor PixArt Video Format MOV
DDR Inbuilt 128Mb DDR3 Picture format JPG
FLASH 4MB NOR SPI Flash Compression format H.264
Screen size 3.0"IPS Screen resolution 480(R,G,B)*640

Polymer lithium battery


finishing guard

Parking monitoring YES
Speaker 8ohm,0.5W Loop recording YES
MIC size and sensitivity Cylindrical MIC-2X4MM,42+-3dB Anti-Shake NO
External I/O port NO Video resolution 1920*1080/30fps
Picture resolution 4032*3024(12M)
Navigation NO
Front lens 200W External rear camera YES
Rear camera NO File lock YES
Voltage DC5V 1.5A Exception prompt YES
Weight HDMI  YES
Working Voltage:DC5V Operating Current:380mA Quiescent Current:100uA
Working Temp.:0-60° Standby Current:320mA Charging Current:150mA

Car charger,DC12-24V input

No-load DC5.3V output

1.5A current output

USB cable,MINI-USB-5P HDMI wire(A+C)
