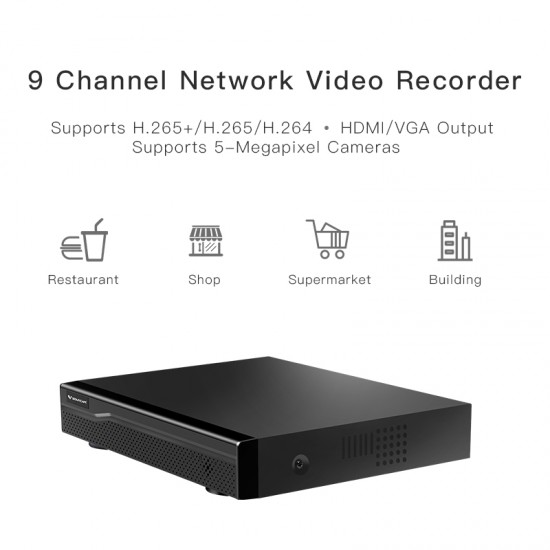

VStarcam N8209 9CH NVR Audio output HD Video Recorder

$75.99
Product Code: N8209
Availability: 20

Available Options

Main parameters:

1.System

Operating System:Embedded LINUX


2.Video&Audio

IP camera outpute: 9 channel

Bandwidth of Network Video:32Mbps

Resolution:8 x 1080P/25fps; 8 x 960P/25fps


3.Display

Interface: 1.HDMI, 1 VGA

User interface: support 16-bit true color graphical menu interface and mouse operation

Resolution: 1024 x 768;1280 x 720; 1280 x 1024;1440 x 900;1920 x 1080

Display Split: 1/4/8

OSD: Channel title, Time, Video loss, Camera lock, Recording


4.Recording

Video Compression:H.264

Audio Compression:G.711a

Record Mode:Manual, Auto(Regular(Continuous), Alarm), Off

Record Interval:1~120min (default: 60 min), Pre-record: 1~30sec


5.Alarm

Trigger Events: Recording, Alarm, Video Push, Email, Buzzer

Video Detection: Video Blind, Video Loss

Abnormal: HDD loss, Low HDD capacity, Net disconnection, IP conflict, HDD error


6.Playback & Backup

Sync Playback:  4 x 960P/25fps; 2 x 1080P/25fps

Search Mode: Time/Date, Alarm, Exact search (accurate to second)

Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode: USB Device / Network


7.Network

Ethernet: RJ-45 port (10/100M)

Network Functions: HTTP, TCP/IP, UPNP, DHCP, DNS, PPPOE, DDNS, FTP, RTSP, SMTP, 3G, Wifi

Mobile Phone: CamViews (IPhone, IPad, Android)

Max.User Access: 10 users


8.Storage

Internal HDD: 1 SATA ports,  up to 4TB

Auxiliary Interface

USB Interface: 2 ports, USB2.0


9.General

Power Supply: DC12V/2A

Power Consumption: 10W(without HDD)

Working Environment:  -10 ~+55°C / 10~90%RH / 86~106kpa

Dimension(W*D*H):  1U255*244*42 (mm)

Weight: 1.0-1.5kg(without HDD)
