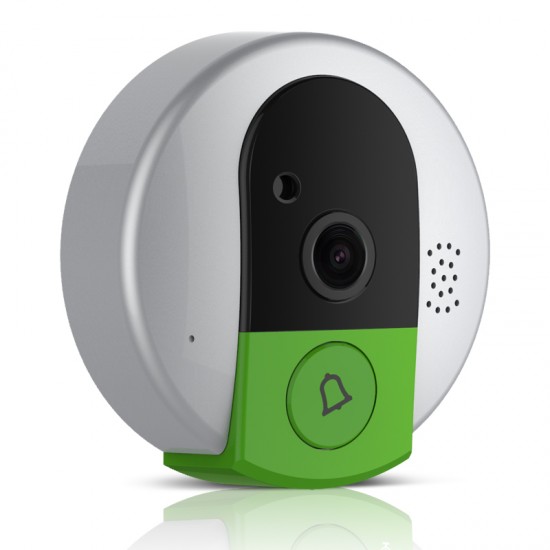

VStarcam V1 Doorbell Viewer Free Cloud Storage Security

Product Code: V1
Reward Points: 5
Availability: 49

Available Options

Product Features:

  • [ HD 720P resolution ] - Utilize HuaWei chipset, 1280×720p resolution provide more clarity. The living stream can be accessed via iOS / Android mobile Phone, Windows PC. Max 4 devices can view at the same time. One device can add Max 64 cameras. Support 2.4Ghz wifi (does not support 5Ghz wifi currently).
  • [ Outdoor Doorbell Camera ] - 160°(diagonal)wide viewing angle lens combine with 120° horizontal & 60° vertical rotation range, give your house 360° surveillance protection.
  • [Night vision & Motion detection ] - VStarcam camera built-in 4pcs SMT IR LED, infrared vision light, the night vision up to 3m. When the camera is at defense the motion detection alarm is available, Alert will be sent by email / app. You can use it as baby / elder / nanny / pet monitor. Keep the place or people you love safe 24/7.

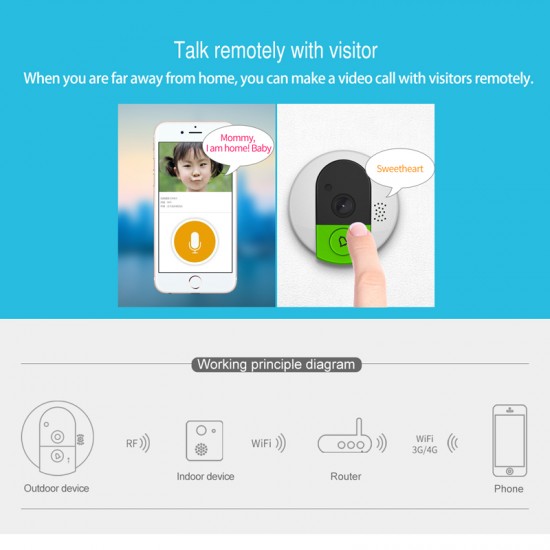

  • [ Two- way audio ] - Built-in speaker and microphone, you can see, hear and speak to whoever is standing in front of VStarcam home security camera directly,such as baby,pet,elderly, and thief.
  • [Cloud Service & Max 128G TF card storage ] - Support max 128G TF card(card not included) storage. VStarcam Cloud Service is also available. You can live-stream your footage or play back based on your preference. Easy operation with intuitive interface. VStarcam provide 1 year warranty.


Model No. V1


OS Embedded Linux OS
system security Three-level user authority management
Online user support 4 visitors simultaneously
Processor Hi3518E V200


Image sensor 1/4 inch 720P, line by line scan CMOS sensor
CMOS support AWB, AGC, BLC
CMOS size 3.84mm×2.16mm
SNR ≥39dB
Minimum illumination 0.5Lux/F2.1(colorful mode),0.1Lux/F2.1(B&W mode)
Lens/viewing angle 2.8mm/horizontal 120° vertical 70° diagonal 160°
Night version 4pcs SMT IR LED,3m IR distance
IR control IR turned on: night vision enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in daytime view mode.


Compression Format H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
Video coding process Multi-stream:720P/25fps+VGA/25fps+QVGA/25fps +720P @1fsJPEG snapshot
Resolution 720p/VGA/QVGA
Bit rate CBR/VBR, output bit rate range:128~4096kbps
Frame rate 25fps
Picture Adjustment Contrast, brightness, saturation, hue are adjustable


Encode mode ASK 100W
Frequency band 433MHz
Feature More universal
Communication One-way reception mode, reception distance: 70m


Input One built in-48dB microphone
Output Built in (8Ω1W)`
Sampling frequency / width 8KHz/16bit
Compression format/ ADPCM/32kbps


Interface 10Base-T / 100Base-TX
Network protocol TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,P2P etc.
WiFi WiFi802.11b/g/n
Wi-Fi Security Wi-Fi Protected Setup (WPS)


P/T No
Preset position No


Motion detection Support motion detection alam
Alarm action APP push notification


UART Serial communication


Storage mode Local storage,SD card recording ( up to 128G Micro SD card)
Interface Micro SD

Physical index

Related Voltage DC 5V±5%
Power consumption Related power:1W(IR ON) / Maximum:1.85W(Pan-tilt ON)
Working environment Working temperature:-10~50℃,working humidity <90%
Weight Gross Weight :? (Note: in kind prevail)
Package Size (L×W×H)
