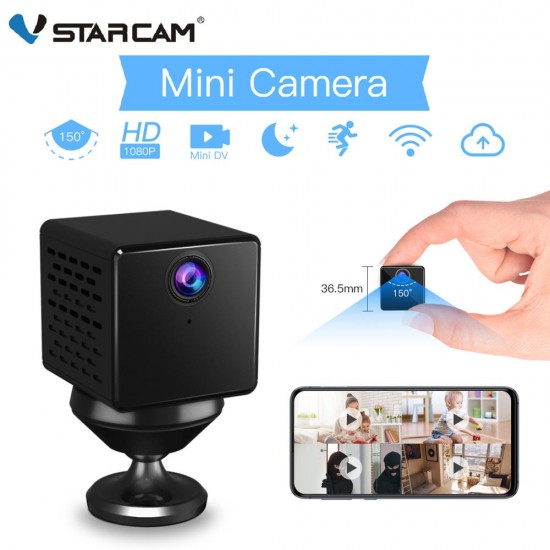

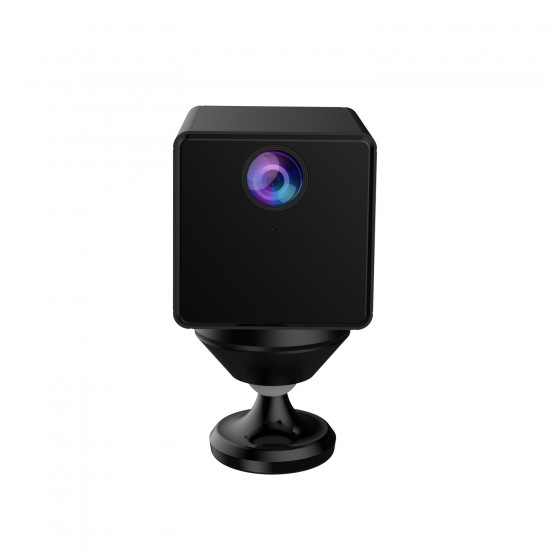

C90S full HD Smart Hiddern Indoor IP Camera


















- Stock: 23
- Model: C90S
- Weight: 245.00g

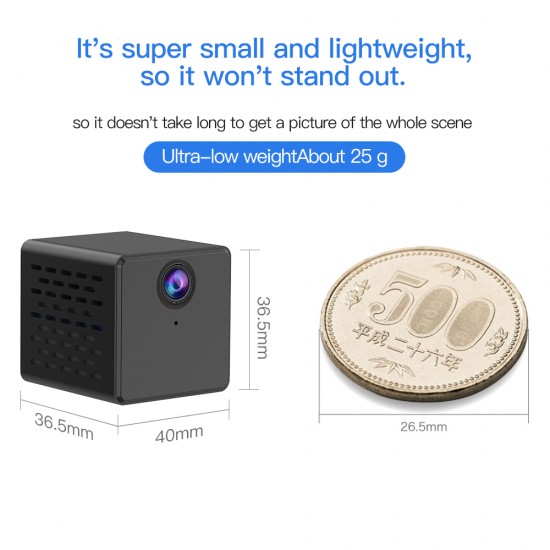

- Dimensions: 36.50mm x 40.00mm x 36.50mm
Available Options
- [ HD 1080P resolution ] - Uilize HuaWei chipset, 1920×1080p resolution provide more clarity. Support Android or IOS mobile phone / Windows PC. Max 4 devices can view at the same time. One device can add Max 64 cameras. Support 2.4Ghz wifi (does not support 5Ghz wifi currently), IEEE802.22b/g/n.

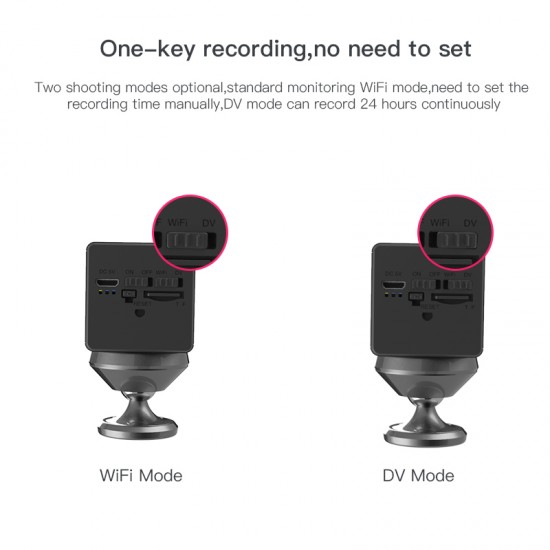

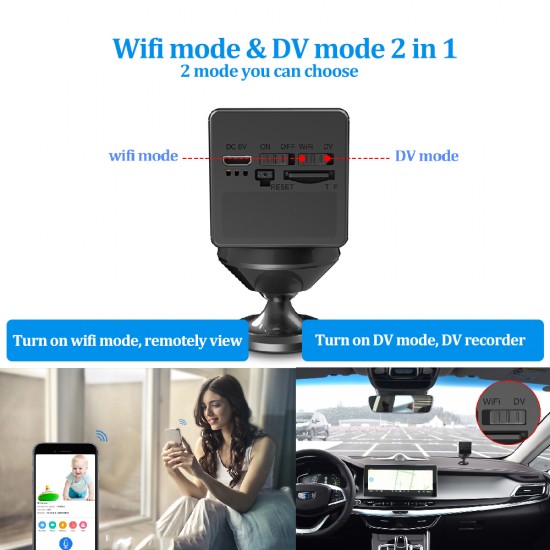

- [ One-Key Recording ] - Two shooting modes optional , standard monitoring WIFI mode, need to set the recording time manually ; DV mode can record 24 hours .

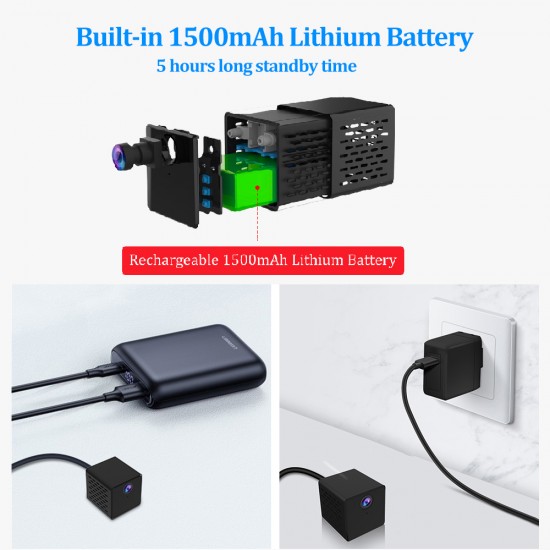

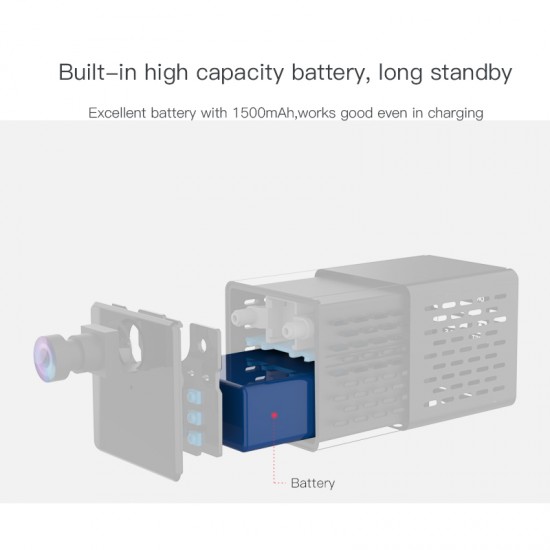

- [ Battery Camera ] - 150(diagonal)°wide viewing angle lens combine ,with GC2053 sensor , to give your house 360°surveillance protection. It supports with 1500mAh battery . Under the conditions of not fully charge battery life, charging 100 times, each time charging need only 3hours 40 mins. When the battery is full charged, it can work for 5 hours and 30 mins during the day; Or it can work for 4 hours and 50 mins during the night ; Or it can work for 7 hours and 55 mins during recording .

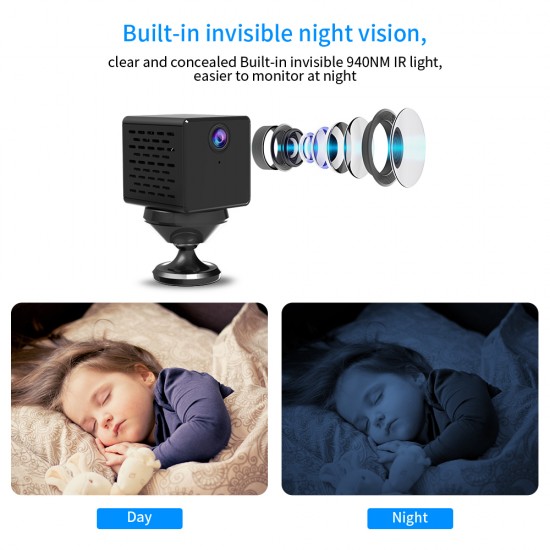

- [ Motion Detection & Night Vision ] - Built-in 8pcs infrared LED lights, night vision up to 5-10m. Support motion detection alarm. Alert can be sent by App/Email. The night vision image will be clear and smart hidden . You can't see the camera's infrared lights in the dark.
- [ Remotely Pickup ] - Remotely Pickup the sound on EYE4 APP . You can listen the sound from every where.

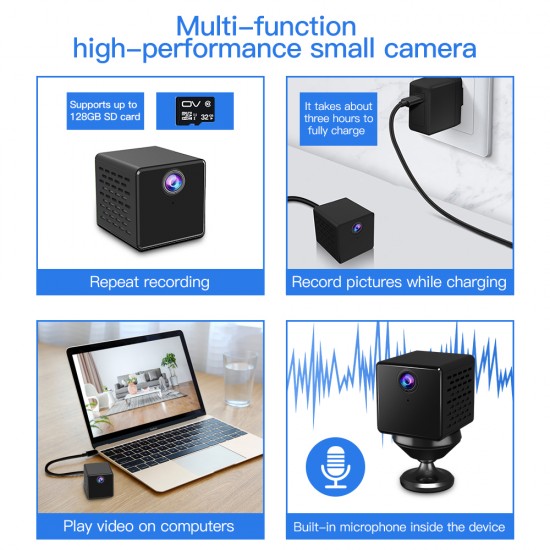

- [TF card storage and Cloud service] - Support max 128G TF card (card not included) storage. The video loop record in TF card automatically. VStarcam cloud is also available. You can live-stream your footage or play back based on your preference. Timeline let you located the specific time’s video in few seconds.
Specifications:
System | Operation system | Embedded Linux OS |
Online visitor | Support 4 visitors at the same time | |
Image Capture | Image sensor | GC2053 sensor, 1/2.9inch, 1080p Progressive Scan CMOS |
Minimum Illumination | 0.3~0.5Lux(Color mode),0 Lux(B&W mode) | |
Lens | HLC - GC2053-V40-V2.0 module | |
View Angle | 150°(diagonal) | |

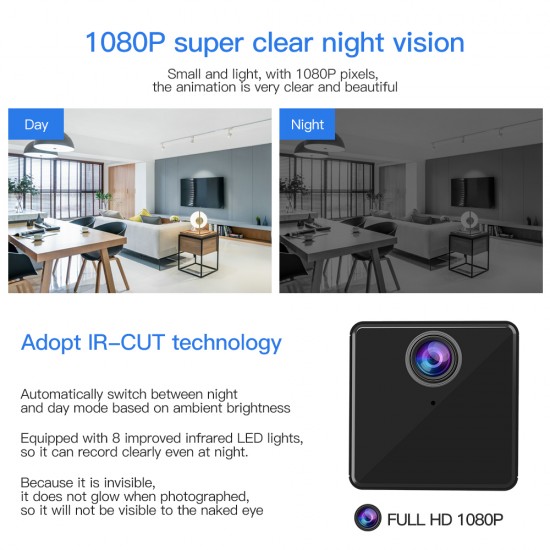

Night vision | Automatic switching of lens sensitivity , 8pcs 940nm SMD IR LED, IR radiating distance : 5-10m | |
Video | Encode format | H.264 main profile@levels:4.0/Motion-JPEG |
Three Stream | Main Stream:1080p(1920X1080)@15fps | |
Bit Rate | 128~4096kbps | |
Maximum frame rate | 15fps | |
Image adjustment | Auto | |
Audio | Input | Built-in -38 dB microphone |
Output | / | |
Sampling frequency / width | 8KHz/16bit | |
Compression standard | ADPCM/32kbps | |

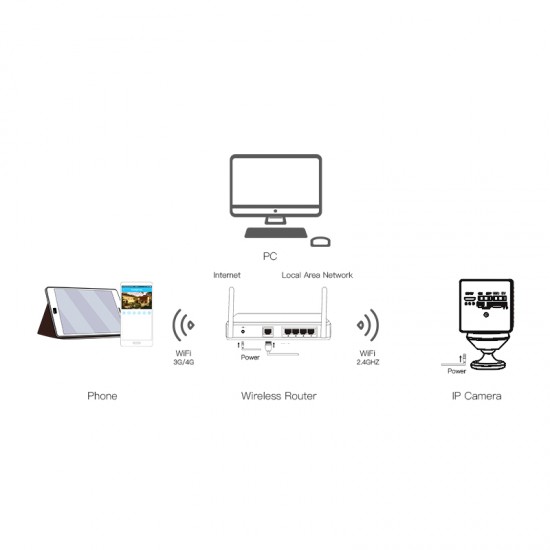

Network | Ethernet | N/A ( AP mode connection) |
Protocols | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc | |
Wireless LAN | IEEE802.11b/g/n | |
Wireless LAN Frequency | 2.4~ 2.4835GHz | |
Wireless LAN security | 64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption | |
Pan-tilt | Pan-tilt | N/A |
Preset position | N/A | |
Memory | Socket | TF Push-push socket,Maximum support 128GB; Cloud Storage |
Alarm | Alarm Trigger | Motion detection |
Physical | Rated voltage | DC 5V±5% |
Power consumption | Related power:2.05W(IR LED on) Maximum power: 3.30W(All function on) | |
Operating condition | Temperature:-10~50℃,humidity:<90% | |
Weight | Gross:TBD g(Note: in kind prevail) | |
Package size | 36.5*40*36.5mm (L×W×H) |
